Jigs & Fixtures

  • When accuracy and precision is needed in manufacturing of parts , our design and analysis team at Cizmak Technologies, designs as well as analyzes fixtures and jigs to hold and support parts being machined to required tolerances.

  • Jigs and Fixture designing requires a great deal of technical precision, attention to detail and knowledge & understanding of industry and its challenges.

  • Our team make use of latest designing tools and software to deliver the desired output.


We offer following design Services for following types of Jigs and Fixtures :

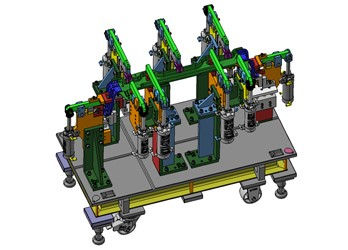

  • Metal Inert Gas Welding Fixtures

  • Spot Welding Fixture

  • BIW Fixture Design

  • Engineering Solutions

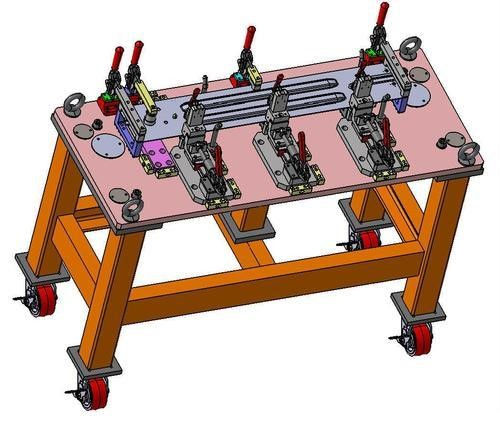

  • Checking Fixture

Our Services Include

  • Concept Design

  • Changes in Concept/3D Finish

  • Detailing the Projects

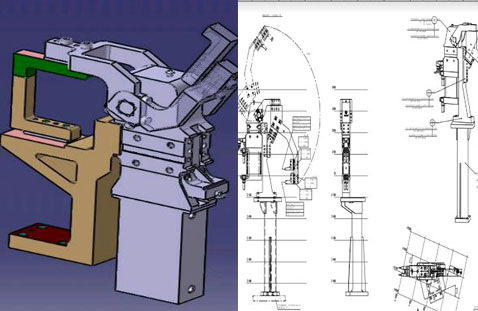

  • Drawing Creation incorporating standards

  • BOM Generation in excel as well different OEM

  • Softwares used includes - FM Stulli, KSL

  • Shimplans
